Installing the carpets - a pictorial

After locating the holes with an awl and cutting away the excess carpet, it's usually a good idea to clean the threads with a 5/16-18 tap.

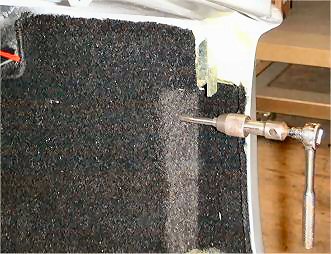

Tapping out the hinge mount

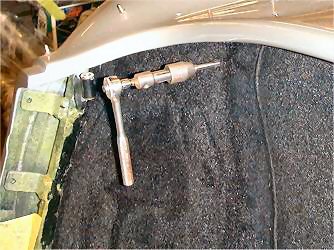

Do the same for the shoulder harness and seat belt bosses.  See below right.  7/16"-20 thread.

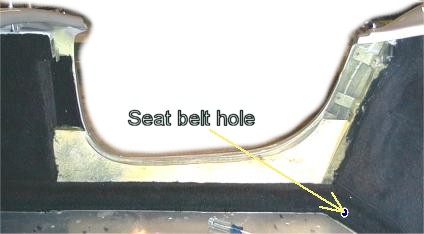

The seat belt hole is moved to the side panel on later chassis.

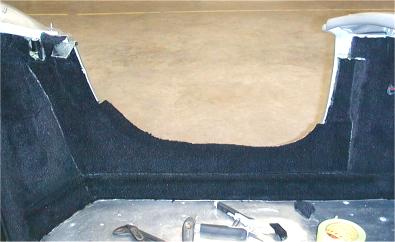

The side carpet goes all the way to the floor on later cars.

Trim even with fiberglass door opening edge.  The raw carpet will be covered with the aluminum trim.

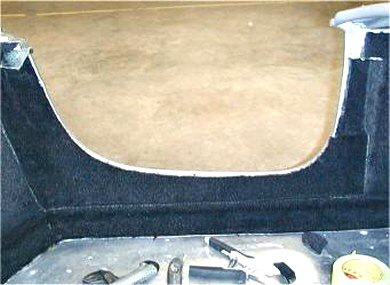

Trimming the under-door rug
