Emergency Brake Lever Adjustment

If the mechanism is free, final adjustment is done by:

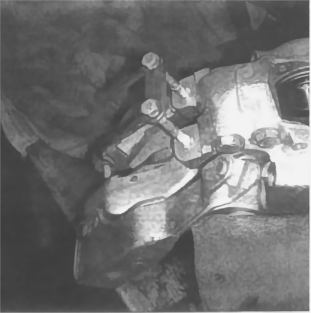

  • Disconnect the cable/linkage  from each  caliper pull-arm.

Then, on each caliper:

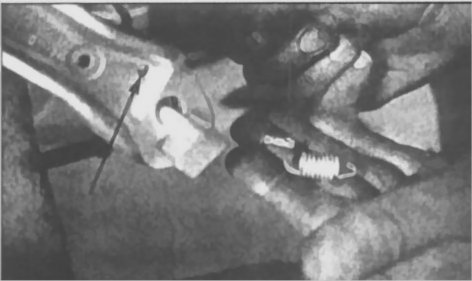

  • Remove the cotter pin (1261).

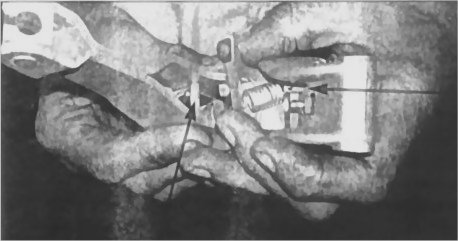

  • Use a screwdriver to tighten the adjusting pin (1260) all the way in, then back off one turn.
  • Replace the cotter pin.

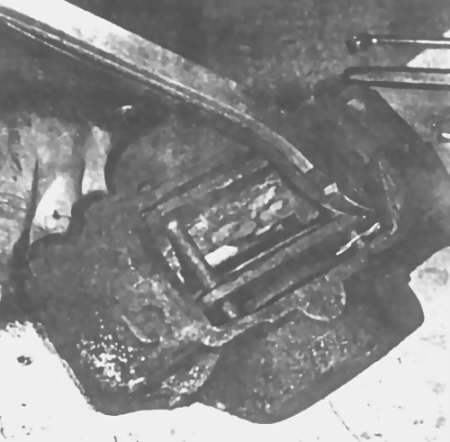

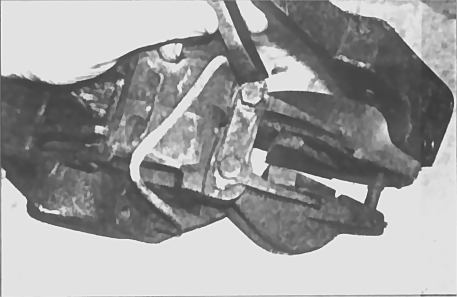

Unbending lock tabs holding the return mechanism

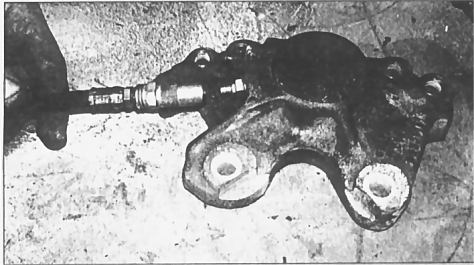

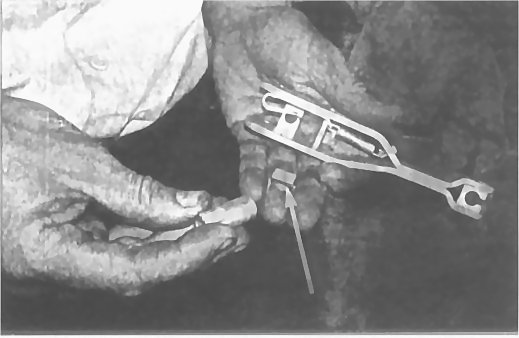

Using hydraulic pressure to remove pistons
