More ERA GT Chassis Pictures

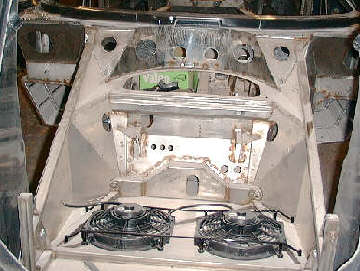

Front bay

The front bay with space on top of the footbox for the heater/air conditioning unit.

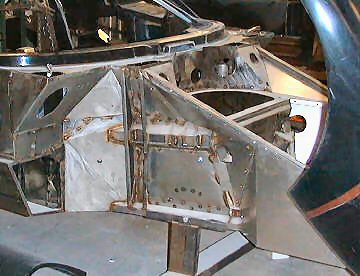

Front suspension mounting point

Front suspension mounting brackets and access to the fuel cells and filler tubes.

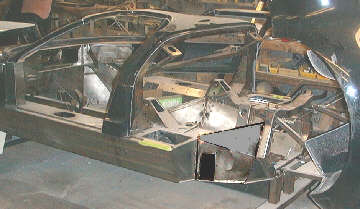

Side view

Side view showing the rocker area and roll bar.

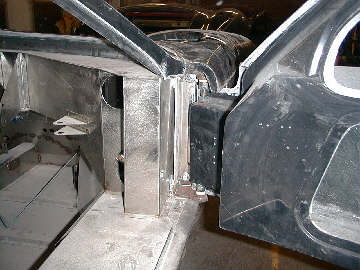

Door hinge

The door is hinged on a bracket that bolts onto the main chassis.

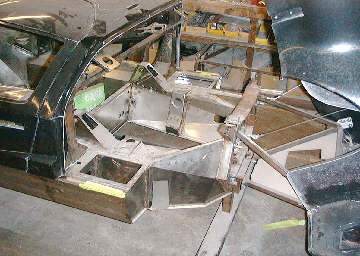

Rear bay

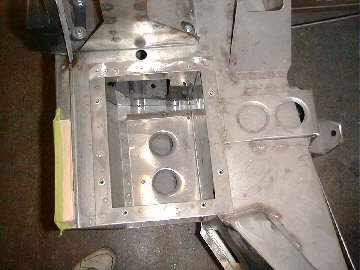

Battery box

Battery storage in the rocker.

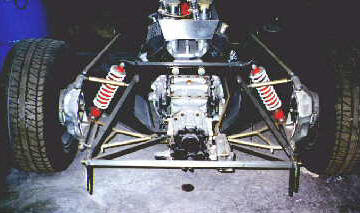

Rear subframe

Rear subframe

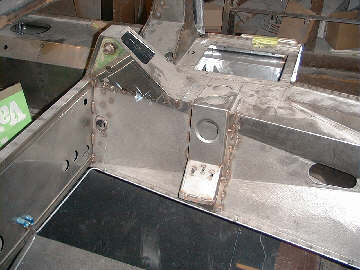

Engine bay

Engine bay

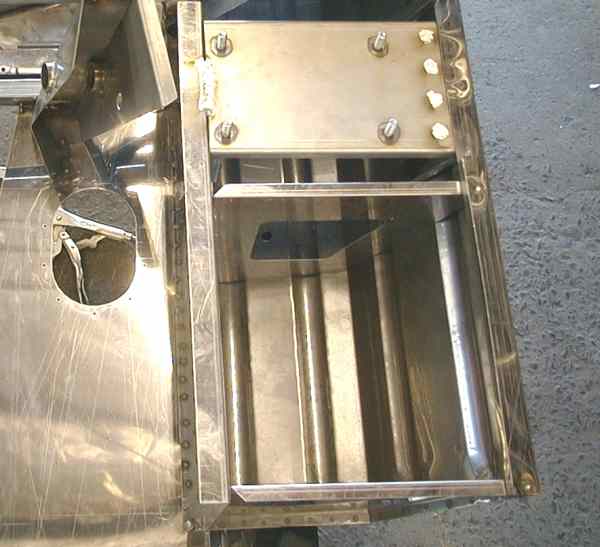

Ribs in progress

A Chassis in Progress:  Before the top of the rear bay is welded in.
