Dry sump 427

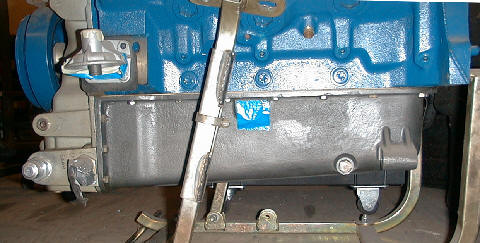

The original oil pan integrated mounting bosses at the rear (right side)
which connected to the T44 transaxle bell housing. |
![Side view](img/ds_side.jpg) |
![Left front view](img/ds_lfront.jpg) |

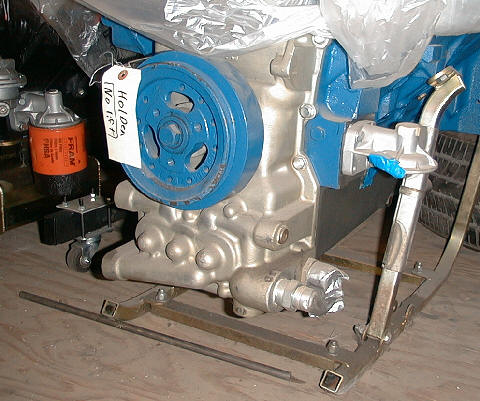

Inlet and outlet fittings to the reservoir tank. |

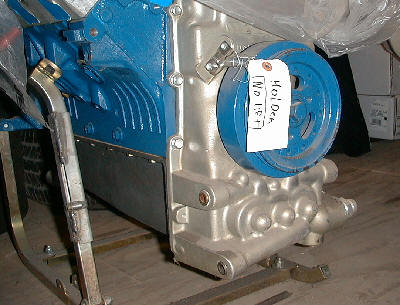

The right side, with bypass valves and machining passages. |
![Right front](img/ds_rfront.jpg) |
