NC = Not confirmed

Qt.

Illustration Number

 GM part number Description

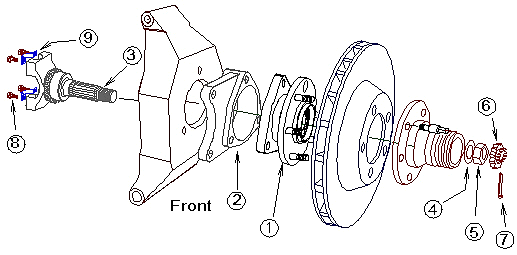

REAR SUSPENSION AND BRAKES

2
 1
 10052216
 BEARING, INTEGRAL  (MUST BE MODIFIED FOR PIN DRIVE)
 OK
1
 2
 10052211 MOUNT, BEARING/CALIPER, LEFT
 OK
1
 2
 10052212 MOUNT, BEARING/CALIPER, RIGHT
 OK
2
 3
 10052216 STUB AXLE WITH SENSOR RING OK
2
 4
 562249 WASHER FOR ABOVE OK
2 5
 562247 AXLE NUT NC
2
 6
 562248 NUT RETAINER OK
2
 7
 11509457
 COTTER PIN OK
8
 8
 14046904 U JOINT RETAINING BOLTS
 NC
4
 9
 14046907 U JOINT RETAINERS (CLAMPS)
 NC
Rear suspension parts
1
 10
 10132836 PAD KIT (ALSO AVAILABLE FROM BAER - 413PBR OK
1
 11
 ERA CABLE BRACKET


B811-064
(BAER)

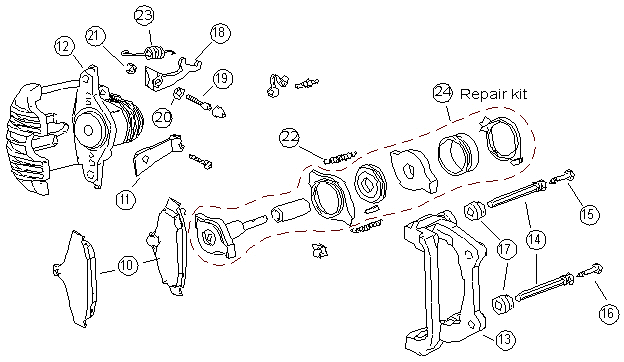

 CALIPER, COMPLETE, RIGHT (FITS '88-'96 CORVETTE WITH STANDARD BRAKES).  COMPONENTS SHOWN BELOW
 OK


B811-065
(BAER)		 CALIPER, COMPLETE, LEFT
 OK
INDIVIDUAL CALIPER PARTS SHOWN BELOW WITH AN ASTERISK*
1
 12
 *10132839
 CALIPER HOUSING AND PISTON, LEFT
 OK
1
*10132840 CALIPER HOUSING AND PISTON, RIGHT OK
2
 13
 *10112652 CALIPER MOUNTING FRAME (ANCHOR PLATE), L/R
 NC
4
 14
 *18022147
 PIN, CALIPER MOUNTING
 OK
2
 15
 *14067559
 BOLT (HEX) FOR UPPER CALIPER MOUNTING PIN
2
 16
 *
 BOLT (SOCKET HEAD) FOR LOWER CALIPER MOUNTING PIN
4
 17
 *
 BOOT, CALIPER MOUNTING PIN
2
 18
 *10132841
 LEVER ARM
 OK
2
 19
 *18020428
 PIN, LEVER ARM
 OK
2
 20
 *10112646
 RETAINING CLIP (WASHER), LEVER ARM
 OK
2
 21
 *22521550
 NUT, LEVER ARM
 NC
4
 22
 *10112650 SPRING, EB COLLAR RETAINER OK
2
 23
 *10112651 SPRING, EB LEVER RETURN OK
2
 24
 *10112656
 REPAIR KIT (PARTS AS INDICATED)
 NC
4
 NOT  SHOWN
 M12 x 30 BOLT, MOUNTING PLATE TO BEARING MOUNT OK
4
 NOT SHOWN
 M12 LOCK WASHER, MOUNTING PLATE TO BEARING MOUNT OK
Rear caliper parts
