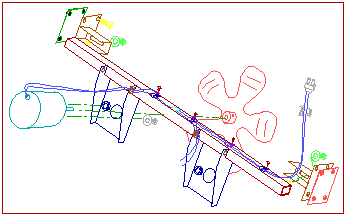

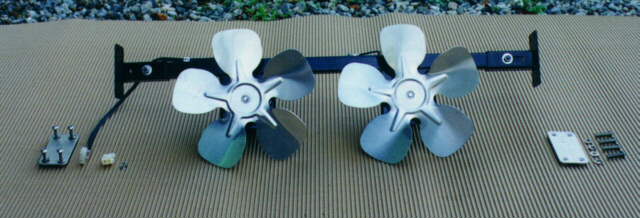

The two 10" aluminum bladed electric fans are mounted on a black powder-coated steel bracket. Rubber insulators between each motor and bracket reduce fan vibration and noise.
End plates on the bracket are easily adjustable to fit between panels separated by from 25 1/2" to 27". By trimming and drilling new holes, the bracket adjustment can be increase to 21"-28". The fans are fully wired and pre-assembled onto the bracket for easy installation. The nut plates are aluminum and all the hardware is stainless steel. |
The fan motors only draw about 8 amps @ 14V, but will cool most small block engines with an adequate radiator. If you are using a big block engine, a supplemental behind-the-radiator fan should be combined with the front fans. The original Cobras overheated quite often with this design. |
